| उत्पत्ति के प्लेस: | यूएसए |
| ब्रांड नाम: | Bently Nevada |
| प्रमाणन: | CO.CQ |
| मॉडल संख्या: | 330101-00-11-15-12-CN |

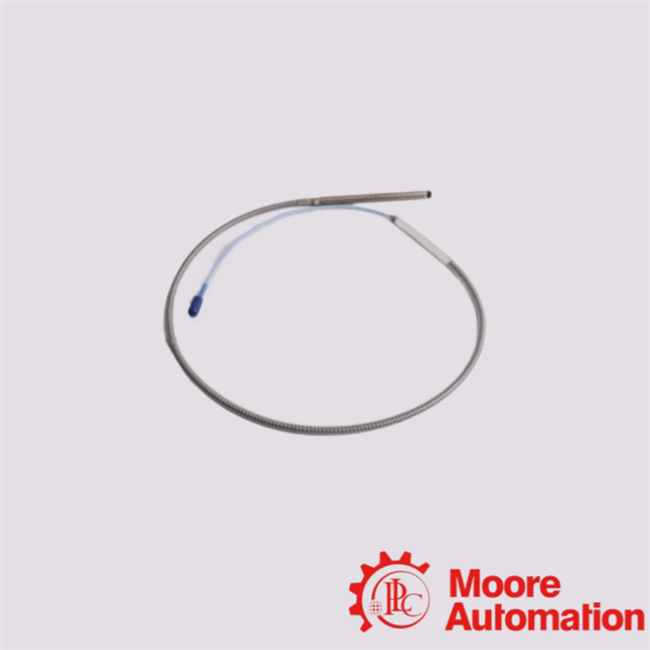

The 330703-000-100-10-01-CN is a rugged, high-precision, industrial-grade proximity probe tailored to Bently Nevada’s 3300 XL 11 mm line. Its robust construction,
secure connectors, broad environmental tolerance, and reliable performance make it well-suited for critical machinery condition monitoring.
330101-00-11-15-12-CN Details
|
FAQ |
|
Q1: What output and sensitivity does it have? A: 3.94 V/mm (100 mV/mil) ±10%, linear over 0.5–4.5 mm, with deviation under 0.10 mm. |
|
Q2: What’s the frequency range and max cable length? A: Frequency response flat 0–8 kHz, supports up to 305 m of field wiring (sensor to monitor) without significant degradation. |
|
Q3: Connector details? A: ClickLoc miniature coax connector—gold-plated brass, positive lock, robust design. TipLoc bonding ensures tip-body integrity; CableLoc provides ~330 N pull strength. |
|
Q4: Does it require a specific monitor? A: Needs a 3300-series Proximitor Sensor and compatible monitor (e.g., 3500). Upgrading from 7200-series necessitates replacing all components and may require configuration/software updates. |
Inquiry now: miya@mvme.cn
| 330905-00-10-10-02-00 | 330878-90-00 | 330851-02-000-060-10-00-CN |
| 330905-00-07-10-12-CN | 330877-080-36-00 | 330850-90-CN |
| 330905-00-07-10-02-05 | 330877-040-37-00 | 330850-90-00 |
| 330905-00-07-10-02-00 | 330851-06-000-070-50-00-05 | 330850-50-05 |
| 330905-00-05-10-12-CN | 330851-06-000-070-10-00-05 | 330850-50-00 |
| 330905-00-05-05-02-CN | 330851-05-000-040-50-01-05 | 330780-91-00 |
| 330903-00-06-05-02-05 | 330851-04-000-023-10-01-05 | 330780-90-00 |
| 330901-11-25-10-01-00 | 330851-02-000-070-90-00-05 | 330780-51-00 |
| 330901-10-25-10-02-00 | 330851-02-000-060-50-00-05 | 330780-50-CN |
| 330900-50-00 | 330851-02-000-060-50-00-00 | 330780-50-00 |
