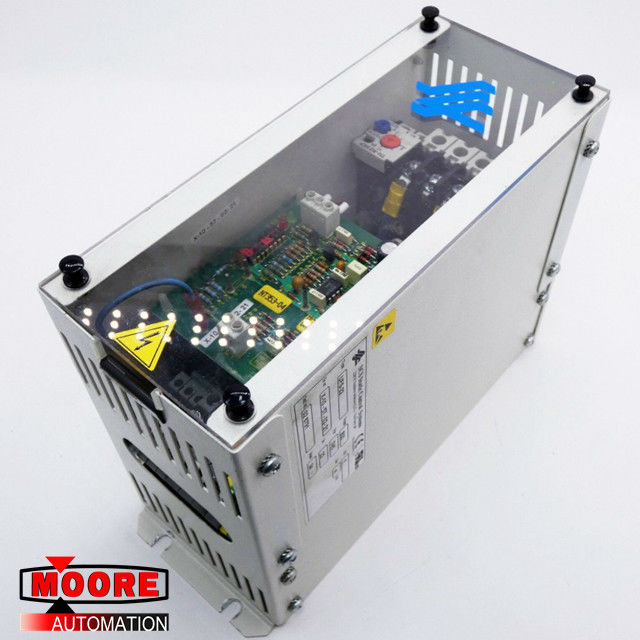

SCS UFS-22 स्थैतिक नियंत्रण प्रणाली
ब्रांड / निर्माता | एससीएस/अमेरीका |
भाग संख्या |
UFS-22 |
वैकल्पिक भाग संख्या |
UFS-22 |
विवरण | स्थैतिक नियंत्रण प्रणाली |
Dimennsions | 10.0 सेमी x 17.5 सेमी x 25.0 सेमी |
वजन | 2.5kg |
उत्पाद विवरण
सामान्य विवरण
The UFS braking units are designed to be used with any frequency inverter or converter equipped with BUS-DC. यूएफएस ब्रेकिंग इकाइयों को किसी भी आवृत्ति इन्वर्टर या कन्वर्टर से सुसज्जित होने के लिए उपयोग किया जाता है। These units can dissipate, through a static chopper, the energy coming from the load during the braking phase. ये इकाइयां एक स्थिर चॉपर के माध्यम से फैल सकती हैं, ब्रेकिंग चरण के दौरान लोड से आने वाली ऊर्जा। The product family has UL Certification for NAFTA market use. उत्पाद परिवार के पास NAFTA बाज़ार उपयोग के लिए UL प्रमाणन है।
मुख्य विशेषताएं
उपयोगकर्ता चयन करने योग्य ब्रेकिंग दहलीज
डीसी-बस से संचालित स्व
मास्टर-दास की कार्यक्षमता
अछूता सहायक के साथ आंतरिक इलेक्ट्रो-मैकेनिकल थर्मल रिले
अवरोधक सुरक्षा के लिए संपर्क।
ब्रेकिंग प्रतिरोधों के स्टारंडर किट
ब्रेकिंग वोल्टेज मानक (SW1-4 = ON): 745
अधिकतम शिखर वर्तमान आईपी (ए): 34
अधिकतम तात्कालिक शक्ति Pmax (KW): 25
मानक Ith (ए): 7) 11
RF (Ω) मिनट .:> 22
तकनीकी निर्देश
हस्तक्षेप वोल्टेज पर सहिष्णुता: 0.8%
2% के बारे में हिस्टैरिसीस
परिवेश का तापमान 0 ° C ° 40 ° C
अधिकतम ब्रेकिंग समय = 10 एस
संरक्षण डिग्री IP20
मैनुअल / स्वचालित रीसेट के साथ थर्मल गार्ड
डीसी आपूर्ति वोल्टेज 450Vdc से 746Vdc (234Vdc) 373dc J संस्करण के लिए)
अधिकतम वोल्टेज 800Vdc (J संस्करण के लिए 400Vdc)
Main supply voltage from 380Vac to 480Vac +/-10%. मुख्य आपूर्ति वोल्टेज 380Vac से 480Vac +/- 10%। (200Vac to 240Vac ±10% for J version) (J संस्करण के लिए 200Vac से 240Vac% 10%)
एससीएस के बारे में
SCS Static Control Systems has been successfully operating in the industrial automation field since 1977. In the beginning, the company designed and manufactured static electrical controls for automated machines and systems and, starting in 1978, it began designing and manufacturing analog converters for DC-powered motors. एससीएस स्टेटिक कंट्रोल सिस्टम 1977 से औद्योगिक स्वचालन क्षेत्र में सफलतापूर्वक संचालित हो रहा है। शुरुआत में, कंपनी ने स्वचालित मशीनों और प्रणालियों के लिए स्थैतिक विद्युत नियंत्रणों का डिजाइन और निर्माण किया और, 1978 में डीसी-पॉवर के लिए एनालॉग कन्वर्टर्स को डिजाइन करना और निर्माण करना शुरू किया। मोटर्स। Thanks to its technical expertise, in 1986 SCS was chosen by Mitsubishi Electric as the sole distributor for Italy. इसकी तकनीकी विशेषज्ञता के लिए धन्यवाद, 1986 में SCS को इटली के एकमात्र वितरक के रूप में मित्सुबिशी इलेक्ट्रिक द्वारा चुना गया था। In 1994, the company began manufacturing analog drives for trapezoidal brushless motors and in 1997, it designed and manufactured the first family of digital drives for sinusoidal brushless motors. 1994 में, कंपनी ने ट्रैपोज़ाइडल ब्रशलेस मोटर्स के लिए एनालॉग ड्राइव का निर्माण शुरू किया और 1997 में, इसने साइनसॉइडल ब्रशलेस मोटर्स के लिए डिजिटल ड्राइव के पहले परिवार को डिज़ाइन और निर्मित किया। In just a few years, the sinusoidal vector converter became the company's leading product and in 2005, a new generation of brushless motor drives was launched to upgrade the control section of the motor. कुछ ही वर्षों में, साइनसोइडल वेक्टर कनवर्टर कंपनी का प्रमुख उत्पाद बन गया और 2005 में, मोटर के नियंत्रण खंड को अपग्रेड करने के लिए ब्रशलेस मोटर ड्राइव की एक नई पीढ़ी शुरू की गई। The recent release of third-generation brushless servo drives crowns the 10 years evolution of the product line. तीसरी पीढ़ी के ब्रशलेस सर्वो ड्राइव्स की हालिया रिलीज़ ने उत्पाद लाइन के 10 साल के विकास को ताज पहनाया।
SCS operates in Italy and abroad currently offering a wide services portfolio. SCS इटली और विदेशों में वर्तमान में एक विस्तृत सेवा पोर्टफोलियो प्रदान करता है। From analog and digital systems design, based on the expertise of its R&D department, to system integration design and deliver, based on the experience and know-how of its Engineering Department. अपने आर एंड डी विभाग की विशेषज्ञता के आधार पर एनालॉग और डिजिटल सिस्टम डिजाइन से, सिस्टम इंटीग्रेशन डिजाइन और वितरित करने के लिए, अनुभव और उसके इंजीनियरिंग विभाग के ज्ञान के आधार पर। The corporate mission is focused on quality, flexibility and the ability to assist the customer through all phases of machine realisation. कॉर्पोरेट मिशन गुणवत्ता, लचीलापन और मशीन प्राप्ति के सभी चरणों के माध्यम से ग्राहक की सहायता करने की क्षमता पर केंद्रित है। After-sales service and technical support have also always been a significant part of corporate policy and have become well-known and appreciated by all operators in the industry. बिक्री के बाद सेवा और तकनीकी समर्थन भी हमेशा कॉर्पोरेट नीति का एक महत्वपूर्ण हिस्सा रहा है और उद्योग में सभी ऑपरेटरों द्वारा अच्छी तरह से जाना जाता है और इसकी सराहना की जाती है।
