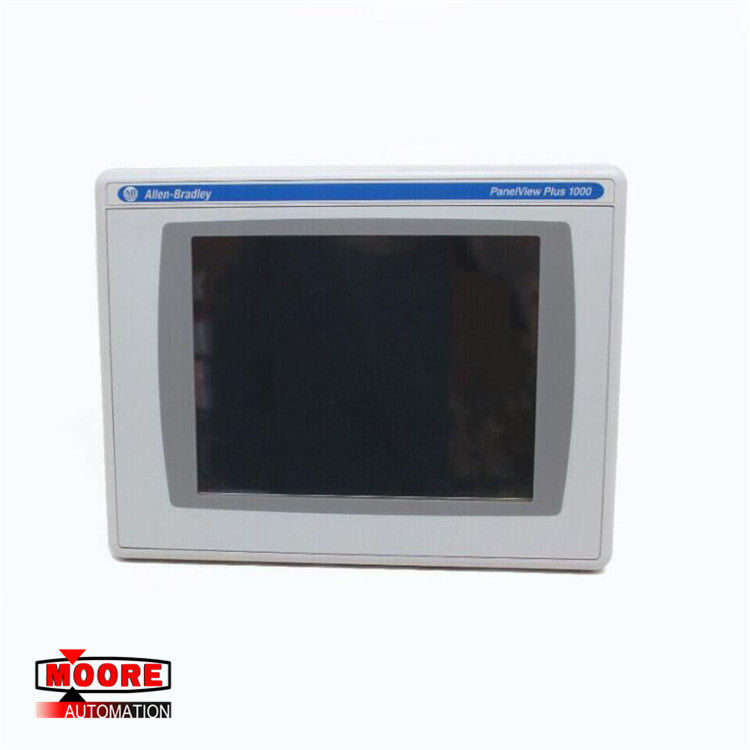

2711P-T10C4D1 2711PT10C4D1 एलन ब्रैडले एबी पैनलव्यू प्लस 1000 टचस्क्रीन कलर डिस्प्ले, ईथरनेट में 10.4 के साथ आता है
⇒ अच्छी कीमत के लिए यहां क्लिक करें 2711P-T10C4D1
ब्रांड / निर्माता | एलन-ब्राडली / यूएसए |
भाग संख्या | 2711P-T10C4D1 |
वैकल्पिक भाग संख्या | 2711P-T10C4D1 |
विवरण | डिवाइसनेट डॉटरकार्ड |
Dimennsions |
28.2 सेमी x 18.3 सेमी x 7.6 सेमी |
वजन | 1.8 किग्रा |
उत्पाद विवरण
The 2711P-T10C4D1 is an AB PlanelView Plus 1000 terminal. 2711P-T10C4D1 एक एलन-ब्रैडली प्लनेल व्यू प्लस 1000 टर्मिनल है। The 2711P-T10C4D1 is an obsolete operator terminal that allows the user to interface with their machine. 2711P-T10C4D1 एक अप्रचलित ऑपरेटर टर्मिनल है जो उपयोगकर्ता को अपनी मशीन के साथ इंटरफेस करने की अनुमति देता है। The 2711P-T10C4D1 terminal allows the operator to easily observe, manipulate and display information graphically. 2711P-T10C4D1 टर्मिनल ऑपरेटर को आसानी से जानकारी का निरीक्षण, हेरफेर और प्रदर्शन करने की अनुमति देता है। This enables operators to quickly understand the status of their application. यह ऑपरेटरों को अपने आवेदन की स्थिति को जल्दी से समझने में सक्षम बनाता है। PanelView Plus is programmed with RSView Studio Machine Edition. पैनल व्यू प्लस को RSView स्टूडियो मशीन संस्करण के साथ क्रमादेशित किया गया है। Some of the features of the 2711P-T10C4D1 include multi-vendor communications, trending, expressions, data logging, animation, and RSView Studio direct browsing of RSLogix 5000 addresses. 2711P-T10C4D1 की कुछ विशेषताओं में मल्टी-विक्रेता संचार, ट्रेंडिंग, भाव, डेटा लॉगिंग, एनीमेशन और RSView स्टूडियो RSLogix 5000 पतों की सीधी ब्राउज़िंग शामिल हैं। 2711P-T10C4D1 has a 10.4-inch Color Display screen. 2711P-T10C4D1 में 10.4 इंच की कलर डिस्प्ले स्क्रीन है। The user is able to control the operator terminal using the Touchscreen to input information and data. उपयोगकर्ता इनपुट जानकारी और डेटा के लिए टचस्क्रीन का उपयोग करके ऑपरेटर टर्मिनल को नियंत्रित करने में सक्षम है।
This unit is powered using 18 to 32 Volts DC power. यह इकाई 18 से 32 वोल्ट डीसी पावर का उपयोग करके संचालित है। The 2711P-T10C4D1 has 64 MB of internal memory. 2711P-T10C4D1 में 64 एमबी की आंतरिक मेमोरी है। The approximate shipping weight and dimensions are 9 lbs. अनुमानित शिपिंग वजन और आयाम 9 एलबीएस हैं। and 16 x 11 x 8 inches. और 16 x 11 x 8 इंच। The most common Series are Ser A, B, C, D, and F. The most common firmware for this Panelview Plus include 3.13 to 4.48. सबसे आम सीरीज़ Ser A, B, C, D, और F हैं। इस पैनलव्यू प्लस के लिए सबसे आम फर्मवेयर में 3.13 से 4.48 शामिल हैं। EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. एथरनेट / आईपी (इथरनेट इंडस्ट्रियल प्रोटोकॉल) एक ओपन इंडस्ट्रियल नेटवर्क है जो रियल टाइम I / O मैसेजिंग और साथ ही मैसेज एक्सचेंज का समर्थन करता है। The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. ईथरनेट पोर्ट, नेटवर्क और मानक ईथरनेट कनेक्शन दोनों का उपयोग करके EtherNet / IP नेटवर्क पर एक नियंत्रक से जुड़ता है। This port can work with application transfers and printing as well. यह पोर्ट एप्लिकेशन ट्रांसफर और प्रिंटिंग के साथ भी काम कर सकता है। The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal such as the 2711P-T10C4D1. EtherNet / IP स्क्रीन प्रदर्शित करता है और उपयोगकर्ता को पैनल व्यू टर्मिनल जैसे 2711P-T10C4D1 के लिए कुछ EtherNet / IP संचार सेटिंग्स को संशोधित करने की अनुमति देता है।
एलन-ब्रैडली न्यूज़
डिस्कनेक्ट स्विच फीचर्स के साथ कॉम्बिनेशन लाइटिंग कॉन्टैक्टर्स
Bulletin 502L Combination Lighting Contactors with Disconnect Switch combine switching and over-current protection in the same enclosure. बुलेटिन 502L संयोजन प्रकाश संपर्ककर्ता डिस्कनेक्ट स्विच के साथ एक ही बाड़े में स्विचिंग और अधिक-वर्तमान सुरक्षा को जोड़ती है। These contactors consist of a Bulletin 500L 3-pole lighting contactor and a disconnect switch (fused or non-fused) mounted in a common enclosure. इन कॉन्टेक्टर्स में बुलेटिन 500L 3-पोल लाइटिंग कॉन्टैक्टर और एक डिस्कनेक्ट स्विच (फ्यूज्ड या नॉन-फ्यूज्ड) एक आम बाड़े में लगे होते हैं।
वर्तमान रेटिंग 15 ... 300 ए शामिल हैं
फ़्यूज़िबल या गैर-फ़्यूसिबल डिस्कनेक्ट स्विच प्रदान करता है
चित्रित धातु संलग्नक शामिल हैं: टाइप 1, टाइप 3 आर / 4/12
स्टेनलेस स्टील के बाड़े शामिल हैं: टाइप 4 / 4X
गैर-धातु संलग्नक शामिल हैं: टाइप 4 / 4X
फैक्ट्री संशोधनों की एक विस्तृत विविधता प्रदान करता है
