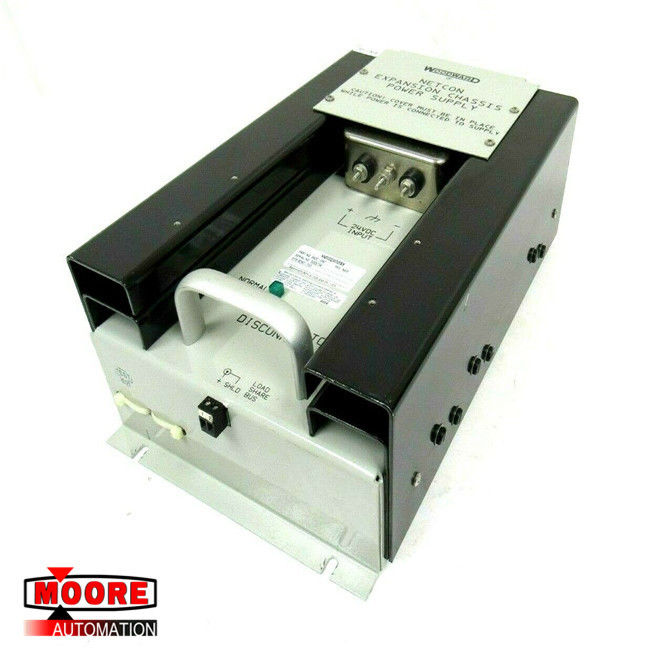

5437-092 5437092 वुडवर्ड विस्तार चेसिस बिजली आपूर्ति
⇒ अच्छी कीमत के लिए यहां क्लिक करें 5437-092
ब्रांड / निर्माता | वुडवर्ड / यूएसए |
भाग संख्या |
5437-092 |
वैकल्पिक भाग संख्या | 5437-092 |
विवरण | विस्तार CHASIS बिजली की आपूर्ति |
Dimennsions | 10.4 सेमी x 15.5 सेमी x 8.0 सेमी |
वजन | 0.69kg |
उत्पाद विवरण
The crow-bar protects the intermediate DC-circuit. क्रो-बार मध्यवर्ती डीसी-सर्किट की सुरक्षा करता है। The activation of the crow-bar during normal operating conditions is not necessary and unusual. सामान्य परिचालन स्थितियों के दौरान क्रो-बार की सक्रियता आवश्यक और असामान्य नहीं है। Nevertheless it could be that the crow-bar has been switched on. फिर भी यह हो सकता है कि कौवा-बार को चालू कर दिया गया हो। In that case it is justified due to a misdemeanor of other components. उस मामले में यह अन्य घटकों के एक दुर्व्यवहार के कारण उचित है। The components must be checked then. घटकों की जाँच की जानी चाहिए।
To protect the Crow-Bar components (dI/dt choke, thyristors) against undesirably current flow and with it high temperatures the components are fitted with thermal switches with a threshold > 80°C and a thermal protection relay (F40) which isolates the primary circuit from the supervision circuit. क्रो-बार घटकों (dI / dt choke, thyristors) की सुरक्षा के लिए अवांछनीय वर्तमान प्रवाह और इसके साथ उच्च तापमान के साथ घटकों को थर्मल स्विच के साथ एक थ्रेशोल्ड> 80 ° C और एक थर्मल सुरक्षा रिले (F40) के साथ लगाया जाता है जो प्राथमिक को अलग करता है पर्यवेक्षण सर्किट से सर्किट। The relay is switched into the “Ringline shut down” circuit which switched off the system immediately in case of failure. रिले को "रिंगलाइन शट डाउन" सर्किट में स्विच किया जाता है जो विफलता के मामले में सिस्टम को तुरंत बंद कर देता है। The fault “M24: Ringline shut down” will be displayed and recorded in the Customer Tool. "M24: रिंगलाइन शट डाउन" का दोष ग्राहक टूल में प्रदर्शित और दर्ज किया जाएगा।
The current flow through the system and therewith through the components will be disconnected immediately. प्रणाली और घटकों के माध्यम से वर्तमान प्रवाह तुरंत काट दिया जाएगा। It is impossible to reset the Relay (F40) remotely. दूर से रिले (F40) को रीसेट करना असंभव है। The service must reset the relay manually after they have checked the components. घटकों की जाँच करने के बाद सेवा को मैन्युअल रूप से रिले रीसेट करना होगा। If necessary change the components. यदि आवश्यक हो तो घटकों को बदलें। The dI/dt choke and thyristors are designed for a maximum temperature of 125°C. DI / dt चोक और थायरिस्टर्स को अधिकतम तापमान 125 ° C के लिए डिज़ाइन किया गया है। To insure a safe operating of the components the threshold of the thermal switches are selected to 80°C. घटकों के सुरक्षित संचालन का बीमा करने के लिए थर्मल स्विच की दहलीज को 80 ° C तक चुना जाता है।
वुडवर्ड के बारे में
Woodward is an independent designer, manufacturer and service provider of energy control and optimization solutions for aerospace and industrial markets. वुडवर्ड एक स्वतंत्र डिजाइनर है, जो एयरोस्पेस और औद्योगिक बाजारों के लिए ऊर्जा नियंत्रण और अनुकूलन समाधानों का निर्माता और सेवा प्रदाता है। For 150 years, Woodward has focused its resources and expertise on delivering proven systems that perform under incredible demands. 150 वर्षों के लिए, वुडवर्ड ने अविश्वसनीय मांगों के तहत प्रदर्शन करने वाले सिद्ध प्रणालियों को वितरित करने के लिए अपने संसाधनों और विशेषज्ञता पर ध्यान केंद्रित किया है। Our customers have come to rely on us to help them address and solve the challenges associated with global efficiency initiatives – from reducing emissions, to increasing energy efficiency, to helping them introduce alternative energy sources. हमारे ग्राहक उन पर भरोसा करने और वैश्विक दक्षता पहल से जुड़ी चुनौतियों को हल करने में मदद करने के लिए हम पर भरोसा करने के लिए आए हैं - उत्सर्जन को कम करने से लेकर ऊर्जा दक्षता बढ़ाने तक, उन्हें वैकल्पिक ऊर्जा स्रोतों को पेश करने में मदद करने के लिए।
